| 원래 장소: | 중국 |
| 브랜드 이름: | Real TIG ，NB TIG |
| 모델 번호: | 8E8418 |
| 최소 주문 수량: | 2개 |
|---|---|
| 가격: | 200-5000USD/pc |
| 포장 세부 사항: | 목판 |
| 배달 시간: | 15-25일 |
| 지불 조건: | L/C, T/T, 웨스턴 유니온 |
| 공급 능력: | 10000Pcs/월 |
| 정장: | D7R D8 D9 |
|---|
NB TIG® Ripper Shanks are made of high quality carbon steel ,which is wear resistant material with superior hardness to make sure maximum strenght to replacement of Komatsu ® , ® and Shantui® bulldozers etc.
NB TIG® treat all replacement parts with high standard and excellent service in production , heat treatment , painting and package .

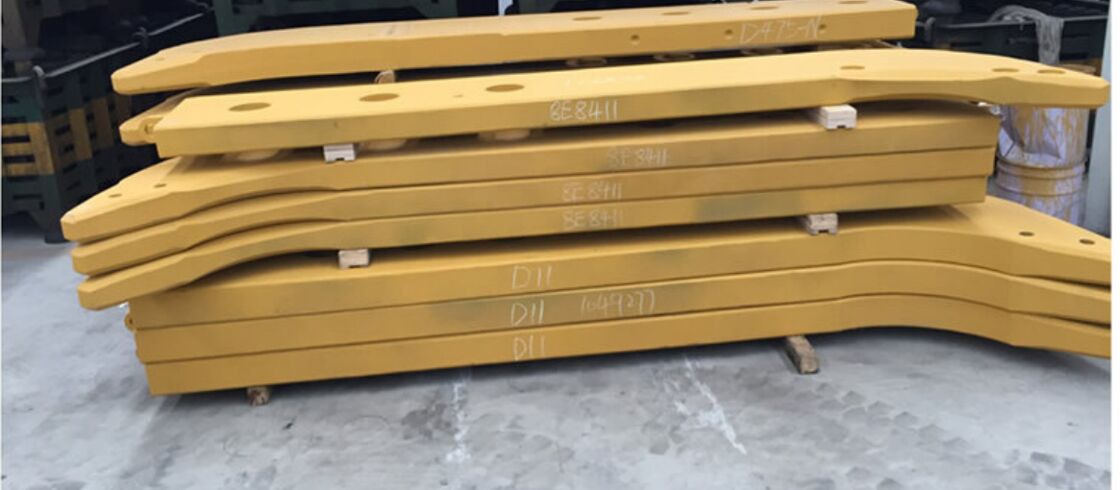

NB TIG® Ripper Shanks Family ,
NB TIG® would like to be your high quality supplier forever.
| P/N | WEIGHT'kg | WIDTH'mm | THICKNESS;mm | LENGTH'mm | PROTECTOR | RIPPER TOOTH |
| 卡特 | ||||||
| 104-9277 | 1043 | 450 | 110 | 2733 | 9N4621 | 6Y3552 |
| 8E8413 | 580 | 400 | 100 | 1977 | 6Y8960 | 4T4502 4T5502 |
| 8E1466 | 450 | 110 | 2825 | 9N4621 | 9W4551 | |
| 8E8412 | 840 | 400 | 100 | 2812 | 6Y8960 | 4T4501 4T5501 |
| 8E8413 | 580 | 400 | 100 | 1977 | ||
| 8E8411 | 638 | 380 | 90 | 2510 | 9W8365 | 4T4502 4T5502 |
| 8E8415 | 435 | 356 | 90 | 1819 | ||
| 8E8417 | 764 | 380 | 90 | 2997 | ||
| 118-2140 | 745 | 400 | 100 | 2510 | 6Y8960 | 4T4502 4T5502 |
| 109-3135 | 905 | 400 | 100 | 2997 | ||
| 8E8414 | 555 | 356 | 90 | 2324 | 9W8365 | 4T4502 4T5502 |
| 8E8416 | 680 | 356 | 90 | 2824 | 9W8365 | |
| 8E5345 | 318 | 330 | 75 | 1763 | 4T5452 | |
| 8E5339 | 425 | 330 | 75 | 2332 | 8E1848 | 9W2451 4T5452 |
| 8E5346 | 289 | 330 | 75 | 1610 | ||
| 8E5348 | 510 | 330 | 75 | 2761 | ||
| 114-4503 | 560 | 356 | 90 | 2325 | 9W8365 | 4T5501 |
| 109-9114 | 680 | 356 | 90 | 2825 | ||
| 107-3485 | 510 | 355 | 90 | 2141 | 8E1848 | 9W2451 4T5452 |
| 8E5346 | 289 | 330 | 75 | 1610 | ||
| 8E5342 | 345 | 330 | 75 | 1910 | ||
| 8E5340 | 450 | 330 | 75 | 2459 | ||
| 8E5347 | 365 | 330 | 75 | 2020 | ||
| 8E5340 | 450 | 330 | 75 | 2459 | ||
| 9W7382 | 158 | 229 | 75 | 1238 | 6Y0359 | |
| 小松 Komatsu | ||||||
| 131-78-31180 | 60 | 182 | 50 | 864 | 131-78-31190 | |
| 154-78-14348 | 159 | 230 | 76 | 1254 | 154-78-31330 | 175-78-31230 |
| 144-78-11243 | 105 | 185 | 76 | 998 | 16Y-84-00003 | |
| 175-79-32131 | 360 | 75 | 2060 | 195-78-21320 | 175-78-31230 | |
| 175-78-21615 | 285 | 330 | 75 | 1640 | ||
| 175-79-32151 | ||||||
| 15A-79-11120 | 374 | 315 | 75 | 1910 | 195-78-21320 | 175-78-31230 |
| 15A-78-11150 | ||||||
NB TIG® Ripper shanks production processes
Raw material cutting &Creck Detection Milling the Edges
Drilling the holes Heat treatment
Painting Package for ship
